needle valve

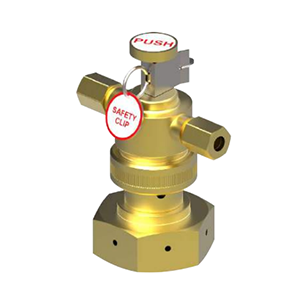

The agent needle cylinder is used for the pneumatic operation of the agent cylinder assembly during system discharge. It is installed on the actuation port at the top of the discharge valve of EFS or PFS. The agent needle cylinder is fitted with a steel needle attached to a needle head that acts as a piston. Pressure from the actuating fluid in the master or pilot cylinder entering the needle cylinder through the copper tubing connected to one of the two copper tube ports is used to actuate the needle head. The other copper tube ports can be plugged or used as an interconnection port for the pneumatic actuation line when two or more agent cylinders are installed protecting the same hazard area. Once operated, the needle cylinder automatically resets when the actuation pressure in the pneumatic actuation line is relieved to below 6 bar (87 psi). The agent needle cylinder is equipped with a push button that can be used for manual operation. The push button is properly secured by a safety clip.
