The nozzles model FEDRxxx for fixed extinguishing systems by FM-200® serves to discharge the
extinguishing agent within the protected zone making a proper distribution of the extinguish agent flows.
Are used in systems for the protection by total flood, not being used in local applications.
They are threaded to the discharge pipe in a vertical position and they can be 360º with a connection thread
from 3/8" BSP to 2 1/2" BSP.

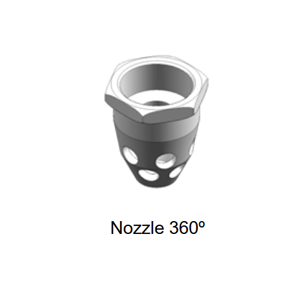

The 360º radial nozzles discharge uniformly the gas in a 360º sectional flat circle. The 360º ones are
centred in the hazard to protect.
These discharge nozzles have a limitation of maximum height of 7.1m and a limitation of maximum
coverage area of 13.2 x 13.2m.
extinguishing agent within the protected zone making a proper distribution of the extinguish agent flows.
Are used in systems for the protection by total flood, not being used in local applications.
They are threaded to the discharge pipe in a vertical position and they can be 360º with a connection thread
from 3/8" BSP to 2 1/2" BSP.
The 360º radial nozzles discharge uniformly the gas in a 360º sectional flat circle. The 360º ones are
centred in the hazard to protect.
These discharge nozzles have a limitation of maximum height of 7.1m and a limitation of maximum
coverage area of 13.2 x 13.2m.
