Technical data

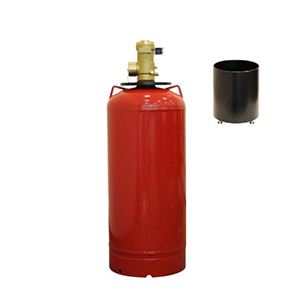

steel cylinder (blank) Steel cylinder (welded) ...........................according to GB 5100
System pressure ....................42 bar at 20 °C (610 psi at 70 °F)
Finish .......................................................RAL3000 - flame red
(Note: colour, colour type are part of the UL / ULC approval)
Extinguishing agent ...............................VSN 200 (HFC-227ea)
Fill ratio:
- Min. VdS / CE .....................................0.4 kg/l (25.0 lbs/ft3) UL / ULC / FM .............................0.5 kg/l (31.1 lbs/ft3)
- Max. VdS ...........................................1.04 kg/l (64.9 lbs/ft3) CE / UL / ULC / FM ...................1.14 kg/l (71.1 lbs/ft3)
Operating temperature range: .............................................-20 °C to +50 °C (-4 °F to 122 °F)
UL / ULC / FM ........................-18 °C to +50 °C (0 °F to 122 °F)
